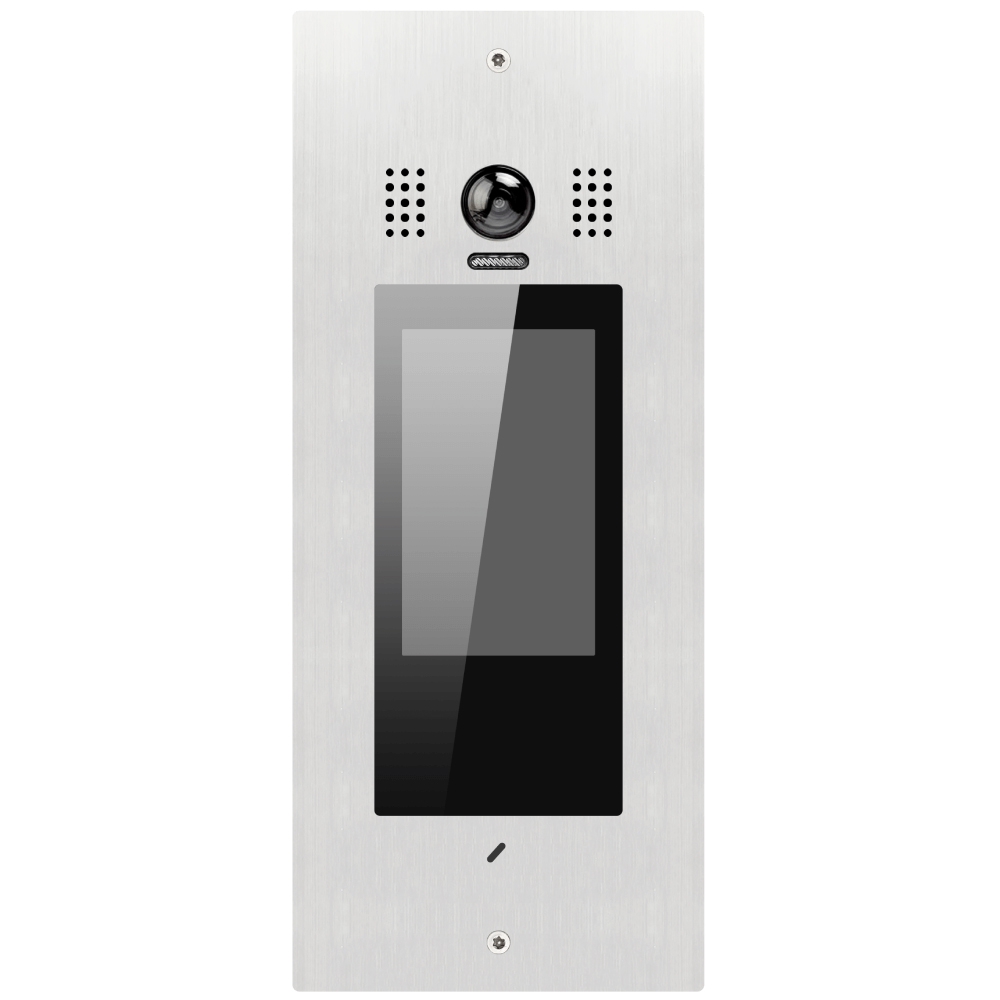

IP Door Entry Camera Panel – IPX

Flush Mount IP Entry Panel

This is a multifunction door entry panel for use in conjunction with the  IP Video Intercom family of products. On the front has an ultrawide camera, a 5" color touch screen with a clear and simple user interface, a keyfob/RF card reader for easy resident access, and a speaker and microphone. It has a modern metal design and can work as a standalone unit with just the app on your smartphone. It can also be connected to the indoor monitor and it also integrates with other solutions. Works great for gates or doors that have lock strike integrations.

What are the advantages? IP intercoms are full-duplex! Both parties can talk at the same time, just like a telephone call. The video is high definition, and the audio quality is crystal clear and perfect.

Features:
Digital directory with a clear and simple user interface
Excellent for most apartment buildings
Large 5″ display with touch icons (glass screen)
Built-in color camera
Fingerprint-resistant stainless steel surface
Streamlined installation and set-up access
Built-in card or fob reader for easy resident access and supports both 13.56Mhz and 128Khz cards
Built-in digital keypad
Noise-canceling audio
Flush Mounting
Uses standard IP network hardware and wiring, PoE power

Specification:
Connection: RJ45 LAN Connector
Power Source: Power-over-Ethernet (IEEE 802.3af Class 0)
LAN Interface: 10 BASE-T / 100 BASE-TX Ethernet (RJ-45)
Camera: Type 1/3.7" Ultra Sense, ISP with 77dB WDR
Len angle: 170° with Fisheye correction
Screen: 5 Inch digital color TFT
Display Resolutions: 800*480 resolution
Minimum illumination: 5 lux
Wire Type: Cat-5e or Cat-6
Wiring Distance: 100m (Approx. 330')
Operating temperature: -10 to +50 (C°)
Protection: IP65 Weather-proof rating
Dimension: 12.44(H)x5.24(W)x1.81(D) inch
Finish: Brushed Stainless Steel

Network Features:
Flexible wiring and hardware configurations to meet the installation requirements of any project
Network hardware can be replaced and upgraded over time and allows leveraging modern network technology resources
Trusted technology that is rapidly improving and expanding
Network components are universally available and can be combined using different manufacturer’s hardware
Network and WiFi technology is widely used and well understood

Package Includes:
1 x IP Entry Panel (IPX-850F)
