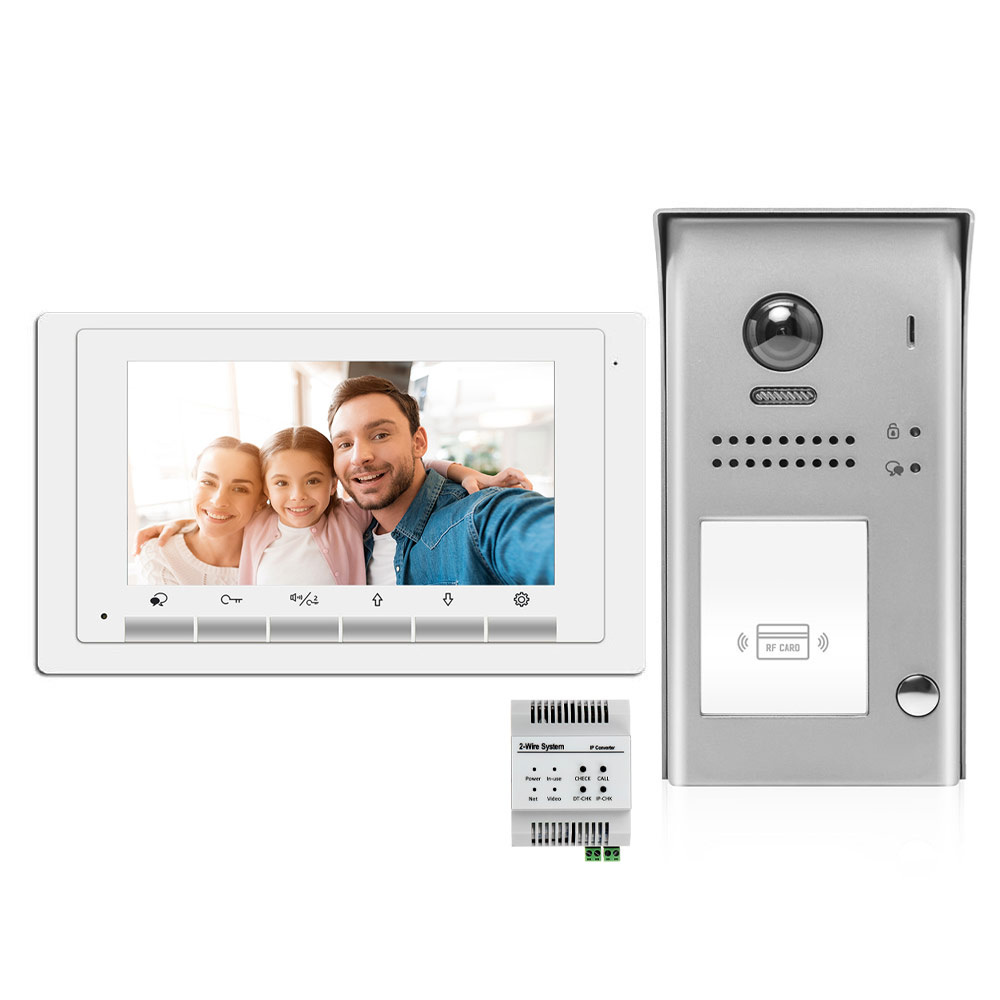

Video Intercom Entry System DK1711S - 1 Apartment Audio/Video Kit with 1 Inside Monitors and IPG Module
Video Intercom Entry System 1 Apartment Audio/Video Kit with 1 Inside Monitor and IPG Module
Specifications:
DT-IPG - IP Gateway
Features:
User Manual IPG Module

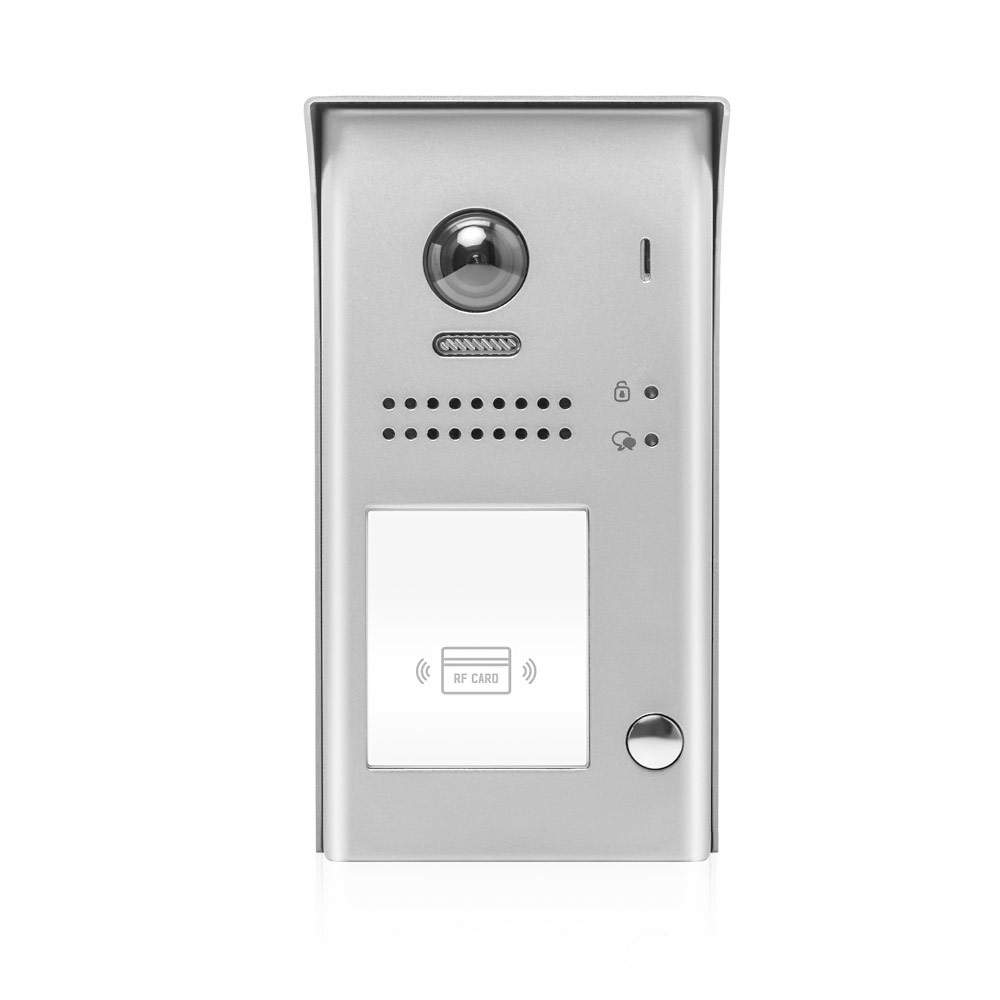

Outdoor Unit is an one family outdoor station with rainhood. 2-wire system color outdoor station with fisheye camera.
Features:
- 607C models have 105° wide angle camera
- Non-polar, two-wire system for simplified installation
- 1 button model
- Built-in card/fob reader
- Proximity access control
- Zinc alloy housing, with electroplating and polishing treatment
- Surface mounting with rain shield
- Weather resistant - IP54 rated
- Large back-lit name plate
- Auto sensing LED light for clear night vision
- Indicator lights during unlock and talk

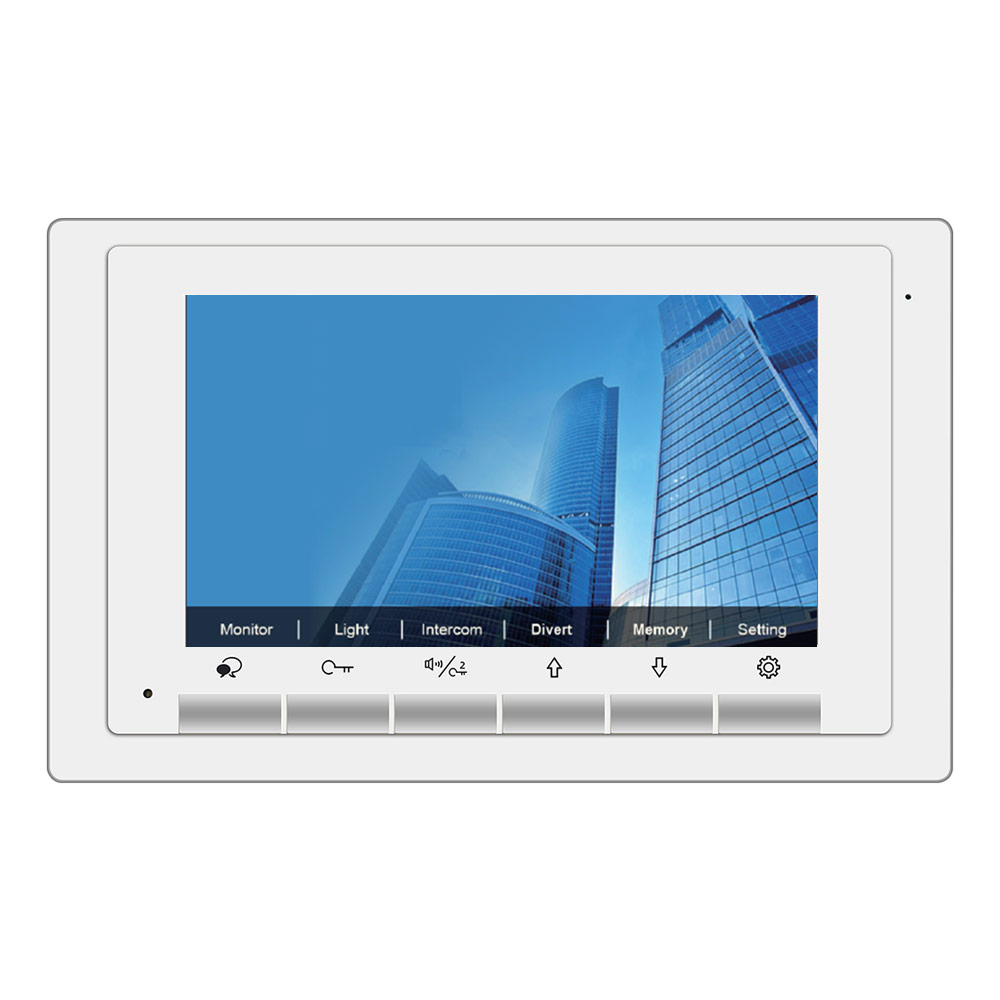

Indoor Unit 2-wire system 7 inch digital color TFT monitor with dummy mechanical button.
Features:
- 7" TFT touch screen
- Hands-free communication
- Color icon menu display
- Ultra thin design
- Dummy mechanical button-layer design
- Sensitive touch sensor button
- High qualifed ABS plastic with signal
- Simplifed and intuitive menu style
Specifications:
- Power supply for indoor monitor: DC 20~28V;
- Power consumption: Standby 6.6mA;
- Working 240mA; Monitor screen: 7 Inch digital color TFT;
- Display Resolutions: 800*3(R, G, B) x 480 pixels;
- Video signal: 1Vp-p, 75Ω, CCIR standard;
- Wiring: 2 wires, non-polarity;
- Dimension: 140(H)×220(W)×17.5(D)mm.
DT-IPG - IP Gateway
Features:
- Connects the 2Easy 2-wire system to an IP network
- Converts 2-Wire analog signal from the 2Easy 2 wire bus to Ethernet signals
- Use as system router or IP network converter
- Provides connection to an SIP server and diverts calls to a smartphone or tablet (Android and Apple iOS)
- Allows remote smartphone or tablet control for communicating, unlocking and monitoring
- Provides image and video recording for single family and multi-family buildings with individual storage folders for each apartment (SD card is required for video)
- Configure using the DX Builder software
